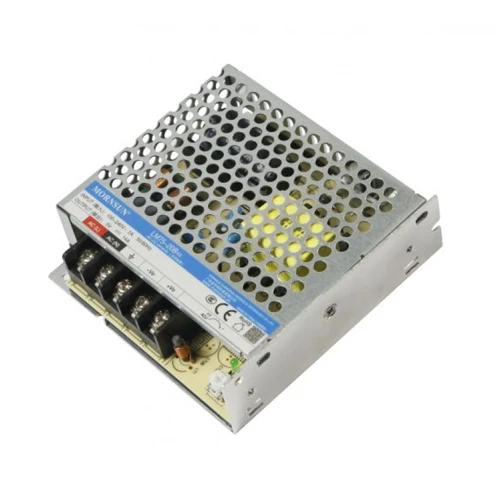

LM75-20B12 Mornsun SMPS – 12V 6A – 72W AC/DC Enclosed Switching Single Output Po

(0) 0 Reviews 0 Orders 0 Wish listed

₹1,699.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

LM75-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no-load power consumption, high efficiency, and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards, and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc

Note: For more technical details please refer to the attached datasheet.

Features:

Universal 85 – 264VAC or 120 – 373VDC input voltage
Accepts AC or DC input (dual-use of the same terminal)
Operating ambient temperature range: -30°C to +70°C
Low standby power consumption, high efficiency

Specifications:

Model
LM75-20B12
Input Voltage Range
85-264VAC
120-373VDC
Output Voltage(V)
10.2 ~ 13.8
Output Power (W)
72
Length (mm):
99
Width (mm):
97
Height (mm):
30
Weight (g):
220
Shipping Weight 0.25 kg
Shipping Dimensions 10 × 10 × 4 cm

Model	LM75-20B12
Input Voltage Range	85-264VAC 120-373VDC
Output Voltage(V)	10.2 ~ 13.8
Output Power (W)	72
Length (mm):	99
Width (mm):	97
Height (mm):	30
Weight (g):	220
Shipping Weight	0.25 kg
Shipping Dimensions	10 × 10 × 4 cm
